Your Reach data is only as good as your ability to put it to good use in your broader field plan, GOTV strategy, and election-day operation. That is why Reach provides you with a number of export options that will allow you to get your data where you need it to go. For more info on other ways to get your data out of Reach, check out the Getting Data Out of Reach article.

Generating a New Export

From the export screen, select an export type, then pick your scope. Your options for scope are:

Date Range

  • All Records: As the name suggests, this scope allows you to get all the data Reach has of a certain type.
  • Custom Range: Use the date-pickers to choose a start and end date for your export.

Tags

For the “People” export only, you must also select which people you want to include. Your options here are your two auto-applied tags. This allows you to pull an export of only people included in your bulk uploads, only your users have added from the Reach app, or both at the same time.

Once you have selected a data type and a scope, click Export to download a CSV. In that CSV, you will find all the columns you need to Bulk Upload this data to another tool of your choosing such as VoteBuilder. You can map the various columns as you see fit. The last column will be a “Reach UID” column which is a unique value for every response in Reach. This is a good way to track unique responses in your own database, if needed.

Export Unique ID Column

A critical part of uploading to most CRMs (Like VoteBuilder) will be making sure your Reach exports include the necessary unique ID for each voter or respondent. If your data set includes more than one unique ID column, Reach allows you to specify which one should be used for your exports. This choice is made not on the export screen, but on the Campaign Settings screen. There, you’ll see a drop-down selector with all the available unique IDs so you can pick the one that will be most useful to you when you’re uploading these responses to an external CRM.

Export Types

People

The “People” export is designed to help you get a big-picture view of all the people your campaign has reached and added. It includes one row per person you have reached. It will tell you all the basic info about the person (their name, address, Reach ID, external IDs), who was the last user to reach them, when they were added, when they were last reached, which auto-applied tag they have, which campaign tags they have, their contact info if you have it, and all their survey question responses. Survey questions will appear each in their own column, with the column header as the first 50 characters of your question’s name and then the question’s ID in brackets. These survey question columns will be sorted in the order you created them.

CSV Example
Data Schema

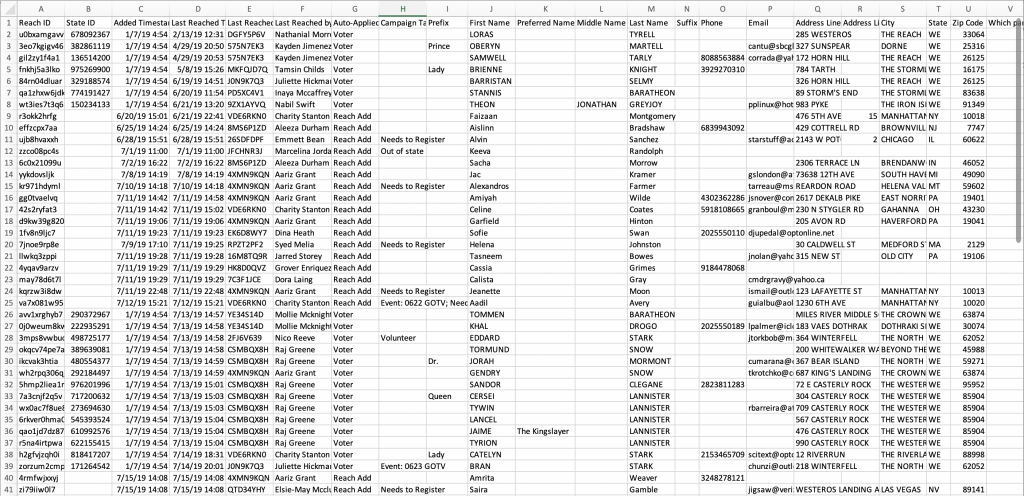

Sample People Export. Check out the raw CSV file.

"Reach ID" : text --+ (i.e. '4928943115')
"{Export Unique ID}" : text --+ dynamically-filled and named based on export ID selected in Campaign Settings
"Added Timestamp" : datetime --+ will only be filled for Reach Adds (i.e. '2020-08-01 13:45:47')
"Added by User ID" : text --+ will only be filled for Reach Adds (i.e. 'R827JVDX')
"Last Reached Timestamp" : datetime
"Last Reached by User ID" : text
"Last Reached by User Name" : text
"Auto-Applied Tag" : text --+ indicates the source of the person based on the name. ofyour source tag (i.e. 'Voter)
"Campaign Tags" : text --+ semicolon-separated list (i.e. 'Volunteer; Petition Signer; Union Member')
"Prefix" : text
"First Name" : text
"Preferred Name" : text
"Middle Name" : text
"Last Name" : text
"Suffix" : text
"Phone" : text
"Email" : text
"Address Line 1" : text
"Address Line 2" : text
"City" : text
"State" : text
"Zip Code" : text
"{QuestionName1}" : text --+ dynamically-filled and named based on campaign's questions
"{QuestionName2}" : text
"{QuestionName3}" : text

Responses

The “Responses” Export type is designed for uploading responses into a VoteBuilder, EveryAction, NationBuilder, or any other third-party CRM and merging them with existing people records by a unique ID. The CSV file will contain one row per response gathered in Reach. The first column will be a unique ID of the person in Reach (based on whichever you have selected on the Campaign Details screen). Then you will always have columns for Person Reach ID, Canvass Date, Canvass Timestamp, User ID, User Name, and Response ID. Then, you’ll have an additional column for every survey question in your campaign. Survey questions will appear each in their own column, with the column header as the first 50 characters of your question’s name and then the question’s ID in brackets. These survey question columns will be sorted in the order you created them.

It is important to remember that in this type, if a Reach user gathers responses to four questions from the same voter and taps save, that will appear as four rows in this file.

CSV Example
Data Schema
Responses Export
Sample Responses Export. Check out the raw CSV file.

"{Export Unique ID}" : text --+ dynamically-filled and named based on export ID selected in Campaign Settings
"Reach ID" : text --+ (i.e. '4928943115')
"Canvass Date" : date --+ simple date without time for VAN upload (i.e. '2020-01-07')
"Canvass Timestamp" : datetime --+ (i.e. '2020-01-07 21:34:35')
"User ID" : text --+ (i.e. 'R827JVDX')
"User Name" : text
"Response ID" : text --+ (i.e. 'R827JVDX')
"{QuestionName1}" : text --+ dynamically-filled and named based on campaign's questions
"{QuestionsName2}"
"{QuestionsName3}"

Response List

The “Response List” Export type has the same data as the “Responses” Export type, but with some key formatting differences and one more useful field. The “Responses” Export type is specifically designed for uploading responses into VAN, and therefore has a separate column for each Survey Question. The “Response List” Export has the Survey Questions in a list instead, so there is one column for “Question Name”, and one column for “Response Value”.

Like the “Response” Export type, if a Reach user gathers responses to four questions from the same voter and taps save, that will appear as four rows in this file type as well.

CSV Example
Data Schema

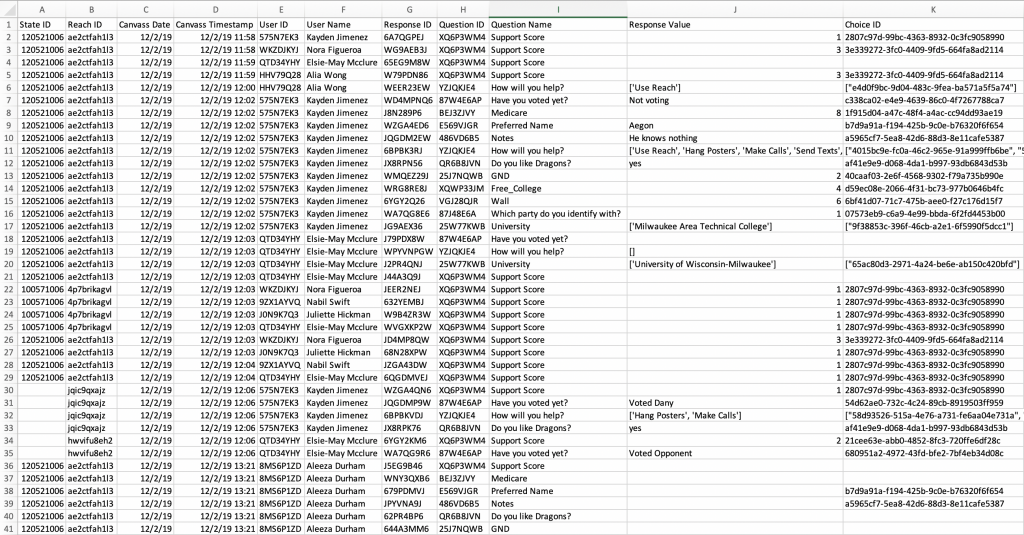

Sample Response List Export. Check out the raw CSV file.

"{Export Unique ID}" : text --+ dynamically-filled and named based on export ID selected in Campaign Settings
"Reach ID" : text --+ (i.e. '4928943115')
"Canvass Date" : date --+ simple date without time for VAN upload (i.e. '2020-01-07')
"Canvass Timestamp" : datetime --+ (i.e. '2020-01-07 21:34:35')
"User ID" : text --+ (i.e. 'R827JVDX')
"User Name" : text
"Response ID" : text --+ (i.e. 'R827JVDX')
"Question ID" : text --+ (i.e. 'R827JVDX')
"Question Name" : text
"Response Value" : text
"Choice ID" : text --+ uuid

Tag History

This export will give you one row per tag-to-person pair. So, if your users have assigned five tags to the same person, that will be represented as five different rows. This allows us to show you what date and time each tag was applied, and by which user. We also include the persons’ name and most recent contact info for good measure. If you need street addresses, we suggest the “People” export type.

Note: We began tracking timestamps and users who applied tags on August 7 2019, so any tags applied before then will not include those data points, but will still appear in your export.

CSV Example
Data Schema
Sample Tag History Export
Sample Tag History Export. Check out the raw CSV file.

"{Export Unique ID}" : text --+ dynamically-filled and named based on export ID selected in Campaign Settings
"Reach ID" : text --+ (i.e. '4928943115')
"Person First Name" : text
"Person Last Name" : text
"Person Phone Number" : text
"Person Email Address" : text
"User ID" : text --+ (i.e. 'R827JVDX')
"User Name" : text
"Tag ID" : text --+ (i.e. 'R827JVDX')
"Tag Name" : text
"Tag Timestamp" : datetime --+ (i.e. '2020-01-07 21:34:35')
"Tag Date" : date --+ simple date without time for VAN upload (i.e. '2020-01-07')
"Tag Action" : text --+ 'Added' or 'Removed'

Relationships

The “Relationships” export is designed to give you insight into how your volunteers are using the Network feature. You can see who your volunteers are adding to/removing from their Network, as well as when they’re making these changes. You’ll see the person’s name, the User that added them to their Network, the Relationship Status (whether it’s Active, or Archived for relationships a user has removed), when the relationship was created, as well as when the relationship was modified.

There is a separate row for each individual User that adds a person to their Network. For example, if three different users added Jon Snow to their Network, there would be 3 rows for Jon Snow, with a separate row for each of these relationships.

CSV Example
Data Schema

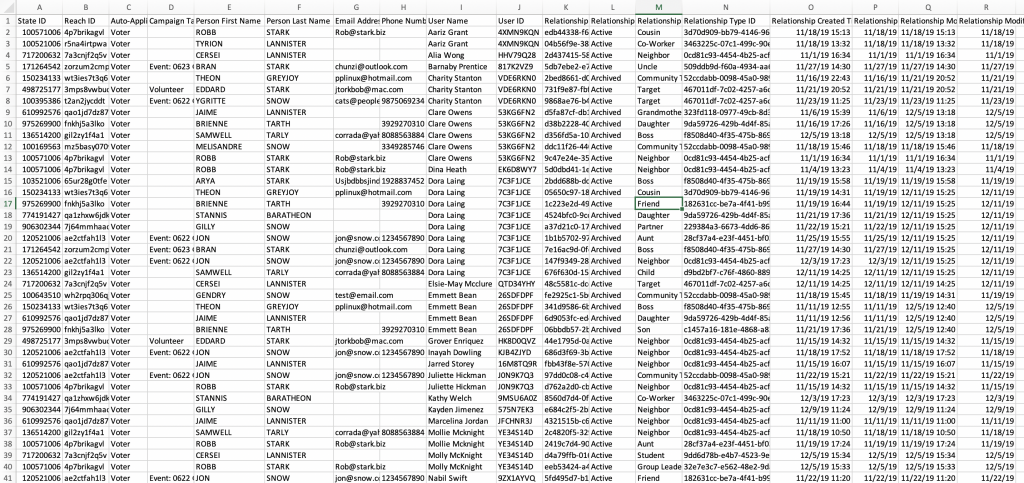

Sample Relationships Export. Check out the raw CSV file.

"{Export Unique ID}" : text --+ dynamically-filled and named based on export ID selected in Campaign Settings
"Reach ID" : text --+ (i.e. '4928943115')
"Auto-Applied Tag" : text --+ indicates the source of the person based on the name. ofyour source tag (i.e. 'Voter)
"Campaign Tags" : text --+ semicolon-separated list (i.e. 'Volunteer; Petition Signer; Union Member')
"Person First Name" : text
"Person Last Name" : text
"Email Address" : text
"Phone Number" : text
"User Name" : text
"User ID" : text --+ (i.e. 'R827JVDX')
"Relationship ID" : text --+ uuid
"Relationship Status" : text --+ 'Active' or 'Archived'
"Relationship Type" : text
"Relationship Type ID" : text --+ uuid
"Relationship Created Timestamp" : datetime --+ (i.e. '2020-01-07 21:34:35')
"Relationship Created Date" : date --+ simple date without time for VAN upload (i.e. '2020-01-07')
"Relationship Modified Timestamp" : datetime --+ (i.e. '2020-01-07 21:34:35')
"Relationship Modified Date" : date --+ simple date without time for VAN upload (i.e. '2020-01-07')

Contact Actions

Every time your users tap the Message, Email, or Call button on a person’s profile screen, or tap “Mark as Contacted” from the person’s action menu, we are keeping track of those button taps. This export details all those button tap events triggering contact actions. We give you information about the person, the user, the action, and the Contact Script selected for Message or Email actions (to learn more about setting up Contact Scripts, check out our Knowledge Base article here).

Note that depending on the user’s device, we may have more or less information in this export. For users on iOS, we only record the action if the user actually *sends* the message or email. For external messages, we are also able to include a column with iOS’s app identifier string. On Android and Web, we cannot tell when they’ve actually sent the message, so the action is recorded as soon as the user taps a button indicating that they at least intended to send a message or an email to that person.

These exports also include actions for any time a user updated an added persons’s name or address. Note that users can only update the name or address of a person who they themselves added to Reach, but we want to make sure you know when this happens, so the Contact Actions export is the place to look.

Note: We began recording this data on July 18, 2019, so any contact actions initiated before that date will not appear in these exports.

CSV Example
Data Schema

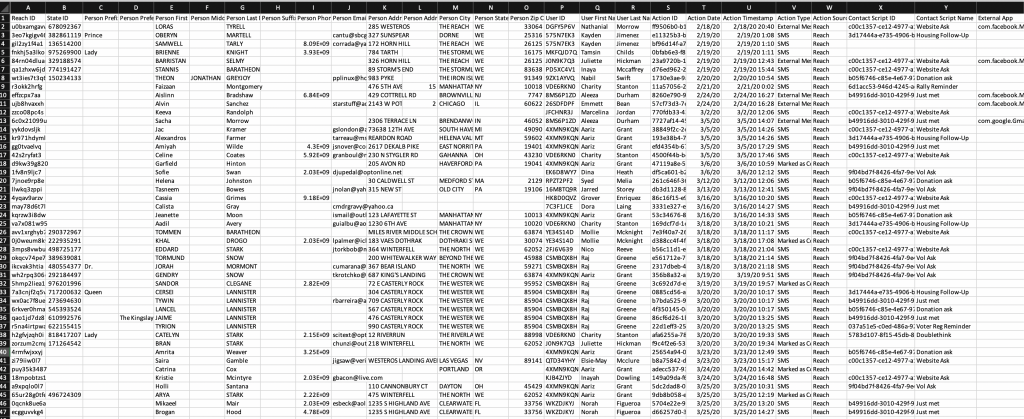

Sample Contact Actions Export. Check out the raw CSV.

"Reach ID" : text --+ (i.e. '4928943115')
"{Export Unique ID}" : text --+ dynamically-filled and named based on export ID selected in Campaign Settings
"Person Prefix" : text
"Person Preferred Name" : text
"Person First Name" : text
"Person Middle Name" : text
"Person Last Name" : text
"Person Suffix" : text
"Person Phone Number" : text
"Person Email Address" : text
"Person Address Line 1" : text
"Person Address Line 2" : text
"Person City" : text
"Person State" : text
"Person Zip Code" : text
"User ID" : text --+ (i.e. 'R827JVDX')
"User First Name" : text
"User Last Name" : text
"Action ID" : text --+ uuid
"Action Date" : date --+ simple date without time for VAN upload (i.e. '2020-01-07')
"Action Timestamp" : datetime --+ (i.e. '2020-01-07 21:34:35')
"Action Type" : text --+ (i.e 'Marked as Contacted', 'External Message', 'SMS', 'Phone Call, ''Updated Address', 'Updated Name', Email)
"Action Source" : text --+ Usually 'Reach'
"Contact Script ID" : text --+ uuid
"Contact Script Name" : text
"External App" : text --+ Only for actions triggered on iOS devices. iOS extension ID (i.e. 'com.facebook.Messenger.ShareExtension')
"Action Card ID" : text --+ uuid of an Action Card. Only filled for contact actions which originated from 'Network Share` Action Cards

Action Card Interactions

Your home screen is full of action cards and those cards have become more and more interactive over time. Users can tap on a customizable Call to Action button to “act” on a card and they can check off a check box on a Task=type card to “complete” that card. More interactions will be coming soon too.

This export will give you all the data about how your users are interacting with your action cards. It includes a row for each interaction event that provides the user, the card, and when/how they interacted with it. Note that the columns about “Points” are not supported yet but are there in preparation for soon-to-come features!

To learn more about setting up Action Cards for your home screen, check out our Knowledge Base article here.

Note: We began recording this data on August 20, 2020, so any action card interactions triggered before that date will not appear in these exports.

CSV Example
Data Schema

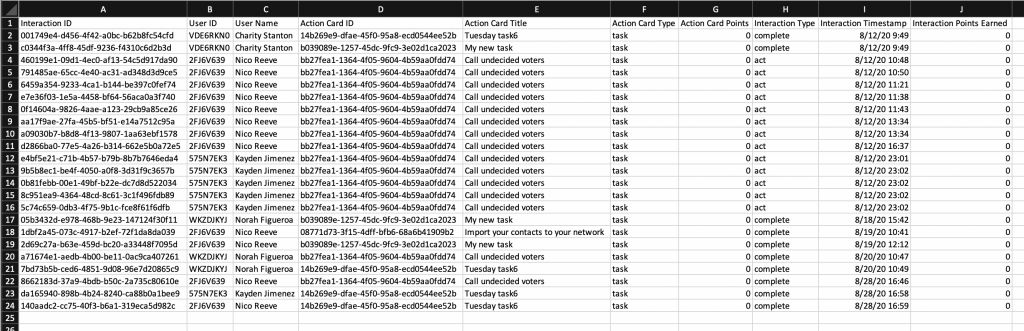

Sample Action Cards Interaction Export. Check out the raw CSV.

"Interaction ID" : text --+ uuid
"User ID" : text --+ (i.e. 'R827JVDX')
"User Name" : text
"Action Card ID" : text --+ uuid
"Action Card Title" : text
"Action Card Type" : text --+ 'post', 'task'
"Action Card Points" : int --+ total points available via action card
"Interaction Type" : text --+ 'act', 'complete'
"Interaction Timestamp" : datetime --+ (i.e. '2020-01-07 21:34:35')
"Interaction Points Earned" : int

Users

The users export is your route to understanding your Reach users. It includes everything from the Users admin table: our unique User ID, the user’s name, the date they were added to your campaign, their email address, their phone country code, their phone number, the number of people they have reached, and their permissions on the campaign.

The fist column of the user export is the unique User ID in Reach which will let you match users to their rows in the other export types. User IDs are consistent across campaigns.

CSV Example
Data Schema
User Export

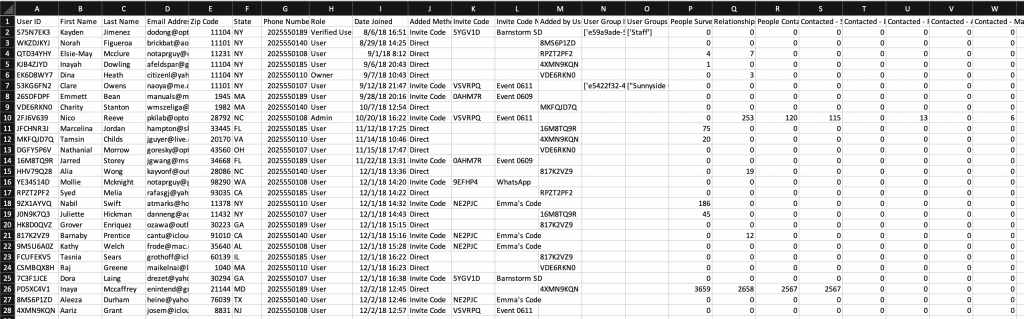

Sample Users Export. Check out the raw CSV file.

"User ID" : text --+ (i.e. 'R827JVDX')
"First Name" : text
"Last Name" : text
"Email Address" : text
"Phone Number" : text
"People Reached" : int
"Role" : text --+ 'User', 'Verified User', 'Admin', 'Owner'
"Date Joined" : text
"Added Method" : text --+ 'Direct' or 'Invite Code'
"Invite Code" : text --+ '7J5VM2J8'
"Invite Code Name" : text
"Added by User ID" : text --+ Only for 'Direct' Added Method (i.e. 'R827JVDX')
